Testing Instrument

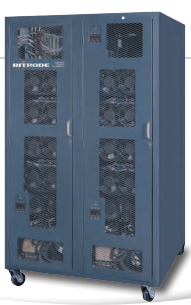

Bitrode MCV EV/HEV Battery Cell Testing System
- Using simulation control, users can easily program advanced test profiles for Federal Urban Drive Schedule (FUDS) or Dynamic Stress Tests (DTS) without writing complex test protocols/schedules
- Bipolar capacity for discharging to below zero volts (optional)
- Test control and data management with Bitrode’s VisuaLCN Lab Client software
- Drive simulations with standard Electric Vehicle tests: FUDS, SFUDS, GSFUDS, DST and ECE-15L
- Life Cycle Testing: Perform charge/ discharge cycling of batteries or modules to obtain charge and discharge capacity, energy and DC internal resistance

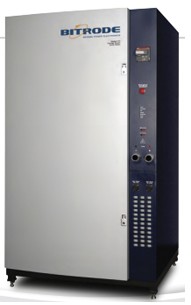

Bitrode CV Automotive & Industrial Cycle Testing System
- Configurations for testing to industry standards: IEC, SAE, BCI
- Test control and data management with Bitrode’s VisuaLCN Lab Client software suite
- Constant current, power or voltage control Parallel circuit operation for greater flexibility in test specification
- Program execution is independent from the PC with VisuaLCN software
- Remote Binary Protocol via Ethernet connection available for 3rd party software control
- Reserve Capacity Testing: Perform a constant current discharge to see how long a useful voltage can be maintained on the battery
- Charge Acceptance Testing
- Life Cycle Testing: Perform charge/ discharge cycling of batteries or modules to obtain charge and discharge capacity, energy and DC internal resistance

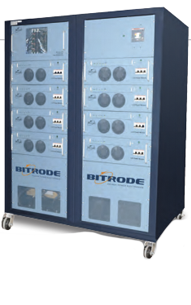

Bitrode LCV Full-Featured Battery Testing System
- No performance loss under voltage control
- Bipolar capacity for discharging to below zero volts
- Test control and data management with Bitrode’s VisuaLCN Lab Client software suite
- Constant current, constant power or constant voltage control
- Parallel circuit operation for greater flexibility in test specification
- Optional inputs can be assigned to any channel
- Program execution is independent from the PC with VisuaLCN software
- Remote Binary Protocol via Ethernet connection available for 3rd party software control
- Discharge power recycled to AC line for cooler, more energy-efficient operation
- Configurations for testing to industry standards: IEC, SAE, BCI
- Life Cycle Testing: Perform charge/ discharge cycling of batteries or modules to obtain charge and discharge capacity, energy and DC internal resistance
- Automotive Battery Testing
- Starting, Lighting and Ignition (SLI) Testing
- Traction Battery Testing

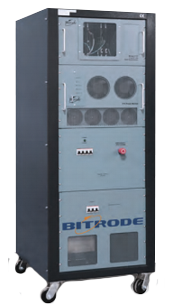

Bitrode FTV EV/HEV Battery Module Test System
Constant current, power or voltage control • Discharge power recycled to AC line for cooler, more energy- efficient operation • Bipolar capacity for discharging to below zero volts • Drive Cycle Conversion utility automates test program development from acquired battery usage data Assignable data channels • Drive Cycle Conversion utility automates test program development from acquired battery usage data • Parallel circuit operation for greater flexibility in test specification • Program execution is independent from the PC with VisuaLCN software • Remote Binary Protocol via Ethernet connection available for 3rd party software control
Drive simulations with standard Electric Vehicle tests: FUDS, SFUDS, GSFUDS, DST and ECE-15L • Battery Module Testing • Start/Stop Testing • Traction Battery Testing • Supercapacitor / Ultracapacitor Testing • Drive Cycle Testing
Bitrode FTF High Power & Voltage Testing System
- No performance loss under voltage control
- Quick disconnects on output leads
- Test control and data management with Bitrode’s VisuaLCN Lab Client software
- Constant Current, Constant Power or Constant Voltage Control
- Optional inputs can be assigned to any channel
- Program execution is independent from the PC with VisuaLCN software
- All units built to CE specifications
- Drive simulations with standard Electric Vehicle tests: FUDS, SFUDS, GSFUDS, DST and ECE-15L
- Drive Cycle Testing
- Integration with motor test benches
- Cycle testing of EV/ HEV Battery Packs
