Monitoring System

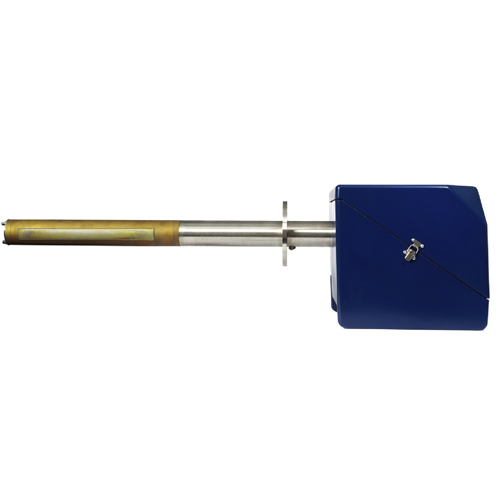

PROTEA P2000 In-Situ CEMS
- Multi-component gas analysis
- Direct in-situ measurements
- Wet or Dry readings
- Automatic signal verification and recalibration
- Oxygen or CO2 measurement normalisation (option)
- Single Flange mounted analyser
- Low maintenance
The Protea 2000 analyser is an ideal CEMS for demanding application with a proven record of reliability.
For example:
- Power Generation
- Cement
- Incineration
- Marine
- Refineries
- Pulp & Paper
- Chemical
- Glass
- Steel
- Nitric Acid Plant
- Fertiliser Plant

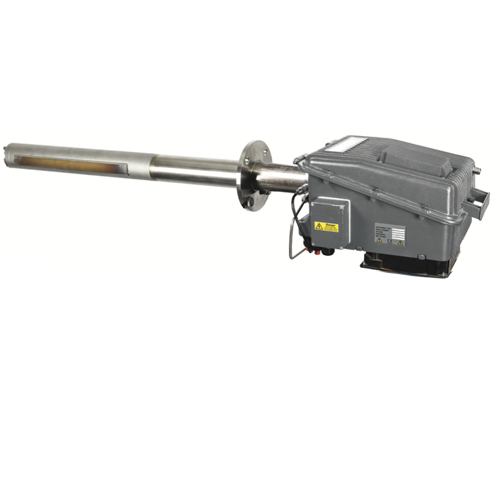

PROTEA P5000 UV Emissions Analyser
- Multi-component gas analysis
- Direct in-situ measurements
- Automatic signal verification and recalibration
- Oxygen or CO2 measurement normalisation
- Flange mounted analyser
- Low maintenance
The P5000 analyser has been in service for over 15 years with continual product improvement to match ever-tightening legislative requirements. Over 100 P5000 units are in operation worldwide – refer to our industry data sheets or visit www.protea.ltd.uk for typical applications and associated measurement ranges.

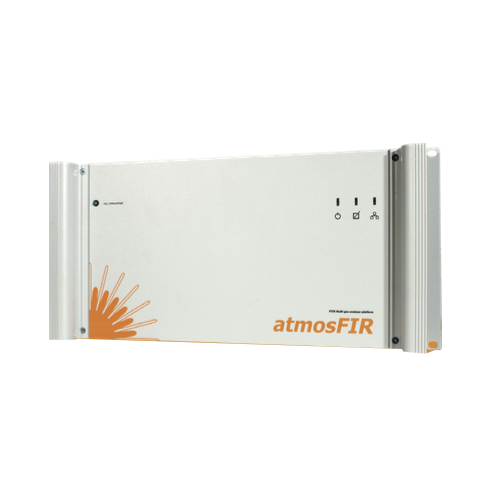

PROTEA atmosFIR
- Low cost of ownership
- Low maintenance cost
- Robust and light, including the latest in fabrication materials
- AtmosFIR combines an FTIR analyser with an in-built sampling system and is designed for ppm-level emissions monitoring as a portable or bench-top unit or as part of an installed CEM system.
Specific Applications for atmosFIR:
- Continuous Emission Monitoring Systems (CEMS)
- Stack Emission Testing
- RealTOCTM measurement
- Speciated VOC with use of high resolution
- Abatement plant efficiency – inlet and outlet
- Ambient air monitoring from 0.5ppm
- Fire Testing research
- Siloxane Measurements
- EX installation for Flammable Gas monitoring

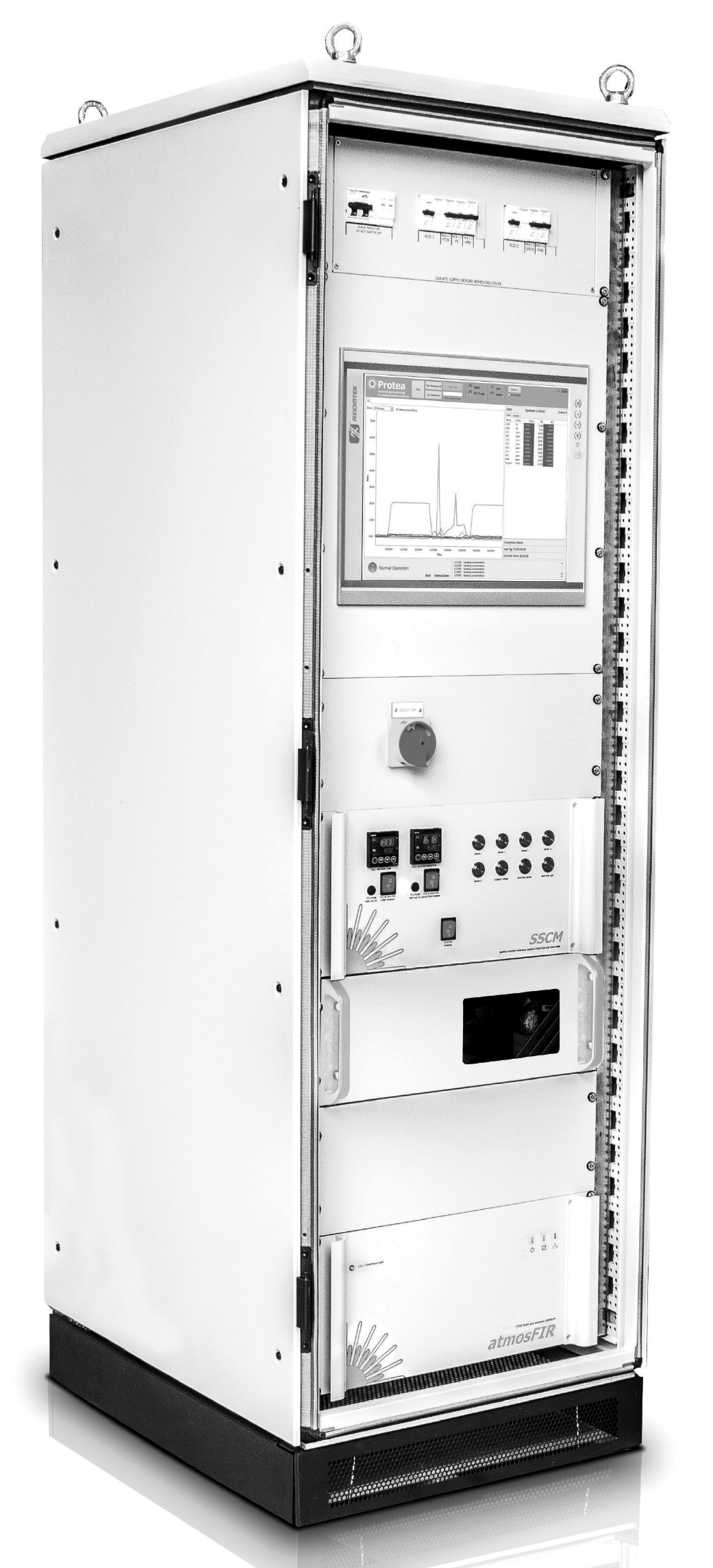

PROTEA atmosFIR CEM
- Waste Incineration Emissions monitoring
- Combustion emissions from power generation
- Core FTIR module available for integration
- Meets the requirements of EN 15267-3, QAL1 and EN14181.
Applications such as incineration and power. A standard gas suite of CO, NO, NO2 , N2 O, SO2 , NH3 , HCl, HF, CH4 , O2 , CO2 and H2 O and more is provided, but with the powerful FTIR analyser, further gases can be added easily in software.

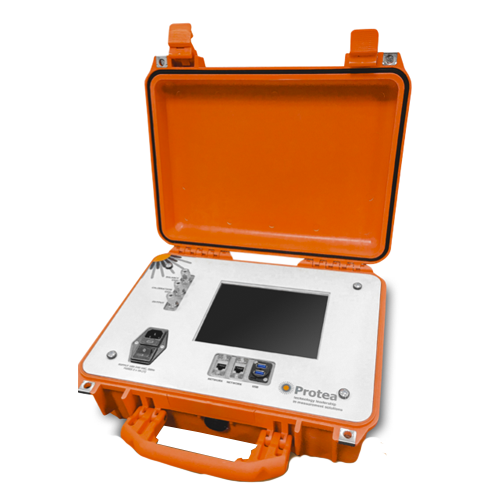

PROTEA atmosCAL
- Up to 8 gas bottles diluted
- Sequences of calibration for unattended operation
- ppb, ppm, mg/m3, %Vol units
- Gas compensations
- ISO 17025 calibration
- High or Low Flow Options
- Variable Flow MFCs for higher accuracy low-level calibrations
- Coated parts for reactive gas calibrations
- Modbus and Analogue Inputs for Gas Analyser Data Logging alongside calibration values
- Continuous Emissions Monitoring Systems (CEMS)
- Factory calibration, Service, QAL1 and QAL2 assessments
- Portable stack analyser calibrations
- ISO 17025 laboratory calibration tool
- Fire Testing analyser calibration
- Calibration for: FTIR Gas Analysers, NDIR Gas Analysers, FID VOC Gas Analysers
