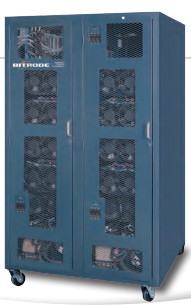

Bitrode MCV EV/HEV Battery Cell Testing System

Bitrode MCV EV/HEV Battery Cell Testing System

  • Using simulation control, users can easily program advanced test profiles for Federal Urban Drive Schedule (FUDS) or Dynamic Stress Tests (DTS) without writing complex test protocols/schedules
  • Bipolar capacity for discharging to below zero volts (optional)
  • Test control and data management with Bitrode’s VisuaLCN Lab Client software
  • Drive simulations with standard Electric Vehicle tests: FUDS, SFUDS, GSFUDS, DST and ECE-15L
  • Life Cycle Testing: Perform charge/ discharge cycling of batteries or modules to obtain charge and discharge capacity, energy and DC internal resistance
Kontak Kami
Bitrode CV Automotive & Industrial Cycle Testing System

Bitrode CV Automotive & Industrial Cycle Testing System

  • Configurations for testing to industry standards: IEC, SAE, BCI
  • Test control and data management with Bitrode’s VisuaLCN Lab Client software suite
  • Constant current, power or voltage control Parallel circuit operation for greater flexibility in test specification
  • Program execution is independent from the PC with VisuaLCN software
  • Remote Binary Protocol via Ethernet connection available for 3rd party software control
  • Reserve Capacity Testing: Perform a constant current discharge to see how long a useful voltage can be maintained on the battery
  • Charge Acceptance Testing
  • Life Cycle Testing: Perform charge/ discharge cycling of batteries or modules to obtain charge and discharge capacity, energy and DC internal resistance
Kontak Kami

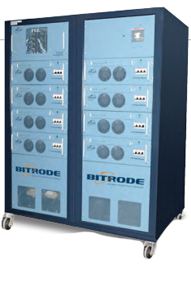

Bitrode LCV Full-Featured Battery Testing System

Bitrode LCV Full-Featured Battery Testing System

  • No performance loss under voltage control
  • Bipolar capacity for discharging to below zero volts
  • Test control and data management with Bitrode’s VisuaLCN Lab Client software suite
  • Constant current, constant power or constant voltage control
  • Parallel circuit operation for greater flexibility in test specification
  • Optional inputs can be assigned to any channel
  • Program execution is independent from the PC with VisuaLCN software
  • Remote Binary Protocol via Ethernet connection available for 3rd party software control
  • Discharge power recycled to AC line for cooler, more energy-efficient operation
  • Configurations for testing to industry standards: IEC, SAE, BCI
  • Life Cycle Testing: Perform charge/ discharge cycling of batteries or modules to obtain charge and discharge capacity, energy and DC internal resistance
  • Automotive Battery Testing
  • Starting, Lighting and Ignition (SLI) Testing
  • Traction Battery Testing
Kontak Kami

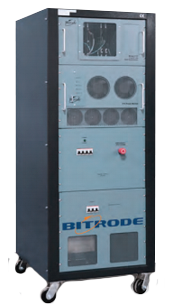

Bitrode FTV EV/HEV Battery Module Test System

Bitrode FTV EV/HEV Battery Module Test System

Constant current, power or voltage control • Discharge power recycled to AC line for cooler, more energy- efficient operation • Bipolar capacity for discharging to below zero volts • Drive Cycle Conversion utility automates test program development from acquired battery usage data Assignable data channels • Drive Cycle Conversion utility automates test program development from acquired battery usage data • Parallel circuit operation for greater flexibility in test specification • Program execution is independent from the PC with VisuaLCN software • Remote Binary Protocol via Ethernet connection available for 3rd party software control

Drive simulations with standard Electric Vehicle tests: FUDS, SFUDS, GSFUDS, DST and ECE-15L • Battery Module Testing • Start/Stop Testing • Traction Battery Testing • Supercapacitor / Ultracapacitor Testing • Drive Cycle Testing

Kontak Kami

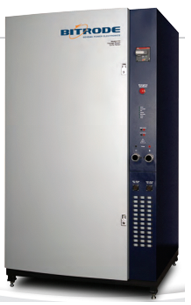

Bitrode FTF High Power & Voltage Testing System

Bitrode FTF High Power & Voltage Testing System

  • No performance loss under voltage control
  • Quick disconnects on output leads
  • Test control and data management with Bitrode’s VisuaLCN Lab Client software
  • Constant Current, Constant Power or Constant Voltage Control
  • Optional inputs can be assigned to any channel
  • Program execution is independent from the PC with VisuaLCN software
  • All units built to CE specifications
  • Drive simulations with standard Electric Vehicle tests: FUDS, SFUDS, GSFUDS, DST and ECE-15L
  • Drive Cycle Testing
  • Integration with motor test benches
  • Cycle testing of EV/ HEV Battery Packs
Kontak Kami

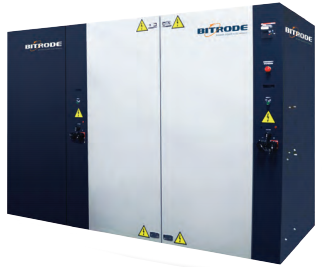

Bitrode FTF - HP High Power Laboratory Testing System

Bitrode FTF - HP High Power Laboratory Testing System

  • New over-current, under-current, over- voltage and under-voltage protection standard on all models
  • No performance loss under voltage control
  • Quick disconnects on output leads
  • Test control and data management with Bitrode’s VisuaLCNTM Lab Client software
  • Constant current, constant power or constant voltage control
  • Optional inputs can be assigned to any channel
  • Program execution is independent from the PC with VisuaLCNTM software
  • All units built to CE specifications
  • E-stop button with connection for external input for integration into external safety systems
  • Remote Binary Protocol via Ethernet connection available for 3rd party software control
  • Discharge power recycled to AC line for cooler, energy- efficient operation
  • Built-in isolation transformer, AC input filter, and DC output filter ensure stable communication to BMS or ECU
  • Safety features include circuit shutdown when the cabinet door is open
Kontak Kami

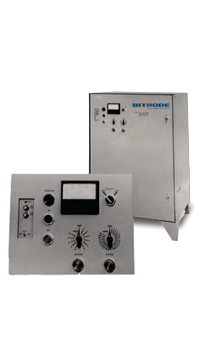

Bitrode DTV High Current Discharge Battery Testing System

Bitrode DTV High Current Discharge Battery Testing System

  • No performance loss under voltage control
  • Bipolar capacity for discharging to below zero volts
  • Test control and data management with Bitrode’s VisuaLCN Lab Client software suite
  • Constant current, constant power or constant voltage control
  • Optional inputs can be assigned to any channel
  • Program execution is independent from the PC with VisuaLCN software
  • Remote Binary Protocol via Ethernet connection available for 3rd party software control
  • Discharge power recycled to AC line for cooler, more energy-efficient operation
  • Cold Crank Testing to industry standards: IEC, SAE, BCI
  • Discharge capacity performance testing to thousands of amperes
Kontak Kami

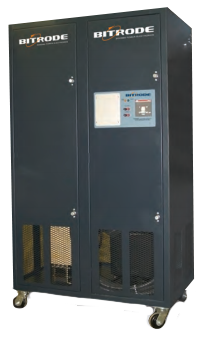

Bitrode CD Manual Charge/Discharge Formation

Bitrode CD Manual Charge/Discharge Formation

  • Constant current charge and discharge
  • Current control of +1% of maximum output
  • Formation of valve regulated for gelled batteries
  • Multi-step charge/discharge timer
  • Silicon controlled rectifier design
  • Six-phase bridge
  • Discharge energy to AC line
  • Quick disconnect PC board
  • Fused DC output
  • Front and rear access doors
  • Series formation of multiple battery strings
  • Tackless formation of automotive and industrial plates
  • Dry-Charge formation
