Monitoring System

Protea

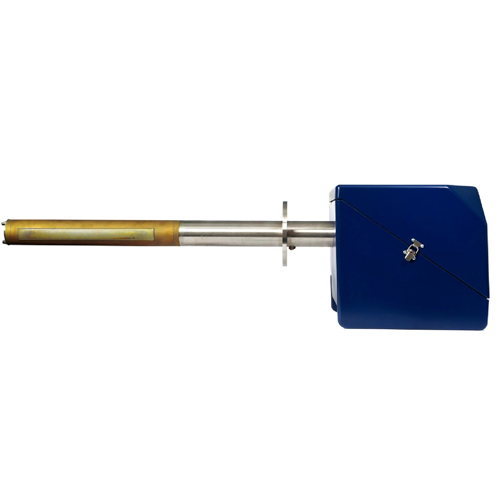

PROTEA P2000 In-Situ CEMS

PROTEA P2000 In-Situ CEMS

  • Multi-component gas analysis
  • Direct in-situ measurements
  • Wet or Dry readings
  • Automatic signal verification and recalibration
  • Oxygen or CO2 measurement normalisation (option)
  • Single Flange mounted analyser
  • Low maintenance

The Protea 2000 analyser is an ideal CEMS for demanding application with a proven record of reliability.
For example:

  • Power Generation
  • Cement
  • Incineration
  • Marine
  • Refineries
  • Pulp & Paper
  • Chemical
  • Glass
  • Steel
  • Nitric Acid Plant
  • Fertiliser Plant
Kontak Kami

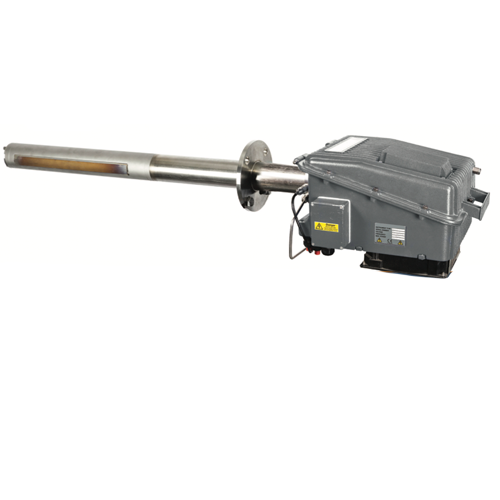

PROTEA P5000 UV Emissions Analyser

PROTEA P5000 UV Emissions Analyser

  • Multi-component gas analysis
  • Direct in-situ measurements
  • Automatic signal verification and recalibration
  • Oxygen or CO2 measurement normalisation
  • Flange mounted analyser
  • Low maintenance

The P5000 analyser has been in service for over 15 years with continual product improvement to match ever-tightening legislative requirements. Over 100 P5000 units are in operation worldwide – refer to our industry data sheets or visit www.protea.ltd.uk for typical applications and associated measurement ranges.

Kontak Kami

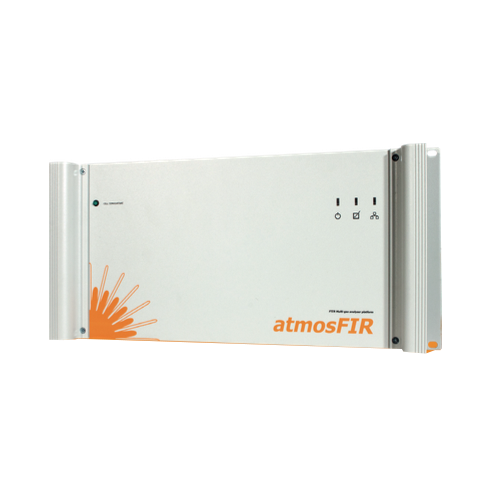

PROTEA atmosFIR

PROTEA atmosFIR

  • Low cost of ownership
  • Low maintenance cost
  • Robust and light, including the latest in fabrication materials
  • AtmosFIR combines an FTIR analyser with an in-built sampling system and is designed for ppm-level emissions monitoring as a portable or bench-top unit or as part of an installed CEM system.

Specific Applications for atmosFIR:

  • Continuous Emission Monitoring Systems (CEMS)
  • Stack Emission Testing
  • RealTOCTM measurement
  • Speciated VOC with use of high resolution
  • Abatement plant efficiency – inlet and outlet
  • Ambient air monitoring from 0.5ppm
  • Fire Testing research
  • Siloxane Measurements
  • EX installation for Flammable Gas monitoring


Kontak Kami

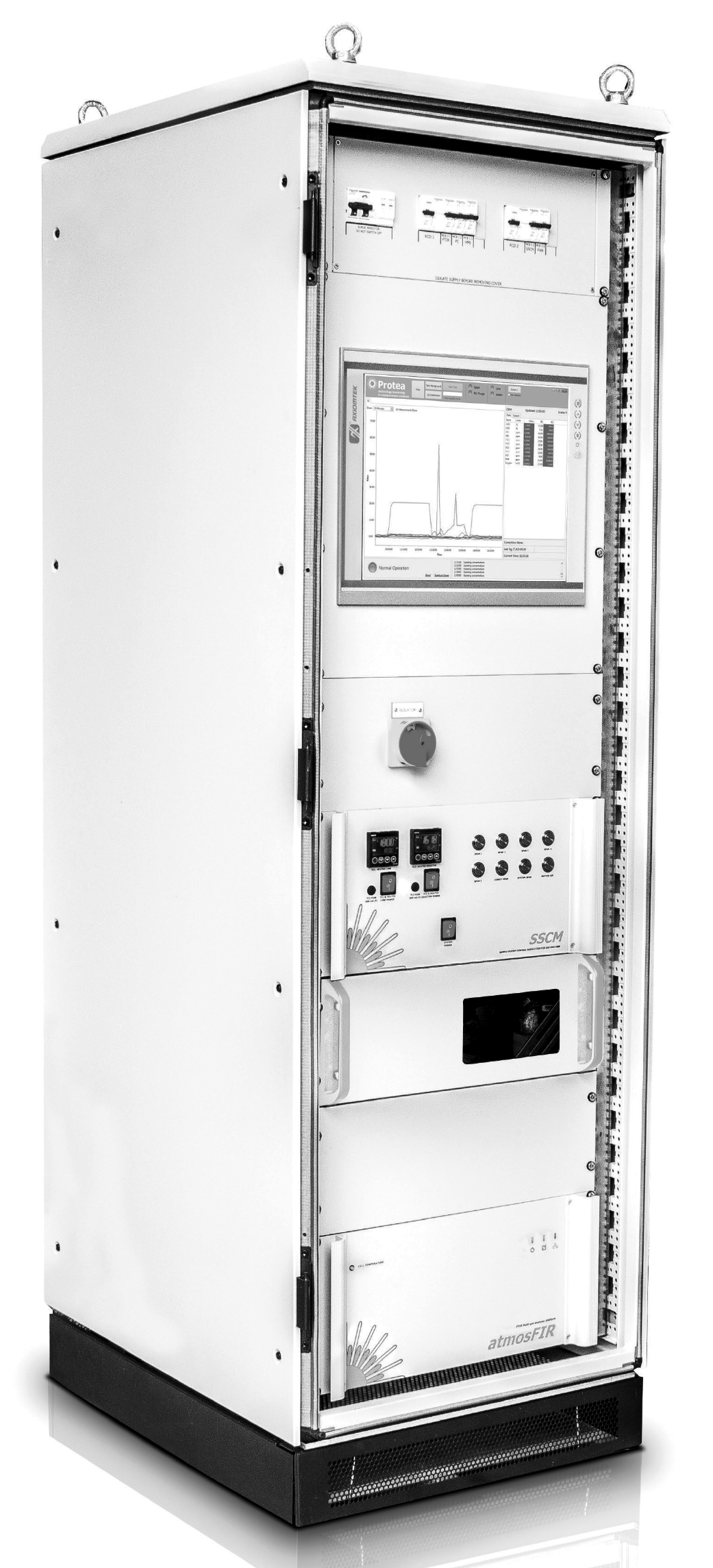

PROTEA atmosFIR CEM

PROTEA atmosFIR CEM

  • Waste Incineration Emissions monitoring
  • Combustion emissions from power generation
  • Core FTIR module available for integration
  • Meets the requirements of EN 15267-3, QAL1 and EN14181.

Applications such as incineration and power. A standard gas suite of CO, NO, NO2 , N2 O, SO2 , NH3 , HCl, HF, CH4 , O2 , CO2 and H2 O and more is provided, but with the powerful FTIR analyser, further gases can be added easily in software.

Kontak Kami

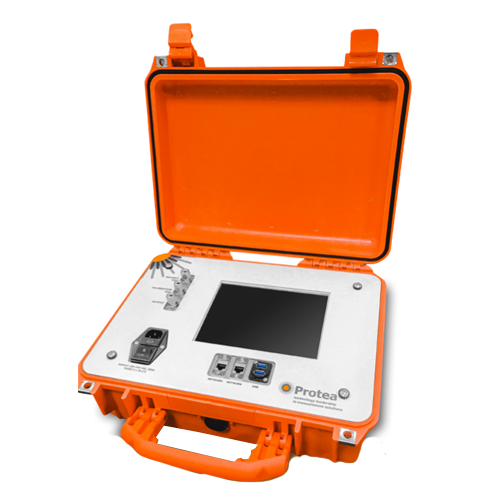

PROTEA atmosCAL

PROTEA atmosCAL

  • Up to 8 gas bottles diluted
  • Sequences of calibration for unattended operation
  • ppb, ppm, mg/m3, %Vol units
  • Gas compensations
  • ISO 17025 calibration
  • High or Low Flow Options
  • Variable Flow MFCs for higher accuracy low-level calibrations
  • Coated parts for reactive gas calibrations
  • Modbus and Analogue Inputs for Gas Analyser Data Logging alongside calibration values
  • Continuous Emissions Monitoring Systems (CEMS)
  • Factory calibration, Service, QAL1 and QAL2 assessments
  • Portable stack analyser calibrations
  • ISO 17025 laboratory calibration tool
  • Fire Testing analyser calibration
  • Calibration for: FTIR Gas Analysers, NDIR Gas Analysers, FID VOC Gas Analysers
Kontak Kami

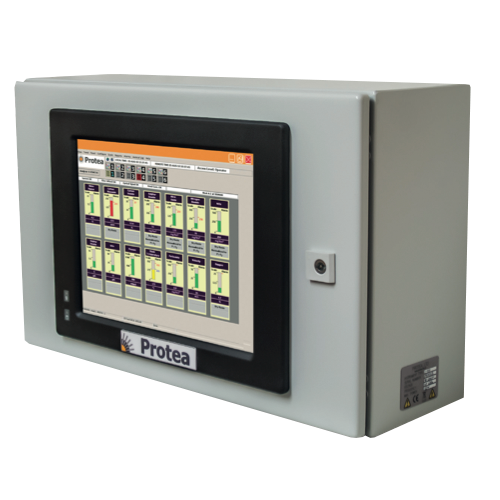

PROTEA S-PC & P-PC

PROTEA S-PC & P-PC

  • Measurement value in digital and analogue form
  • Alarm configuration and levels
  • Alarm status
  • Normalisation (equivalent correction for carbon dioxide or oxygen)
  • Wet / dry basis reporting
  • System diagnostic alarm with access to specific detailed displays
  • Autozero / calibration status
  • Analyser connection status and analyser-specific status panel screens for each instrument

The Analysers communicate via a serial data link to a PC running Protea S-PC software which can be located up to 1200m from the CEMS. To facilitate ease of operation, the intuitive software is designed to utilise either a pointing device or touch screen for all operator functions. The Protea S-PC is capable of supporting up to six Protea Analysers with associated third party devices.

Kontak Kami

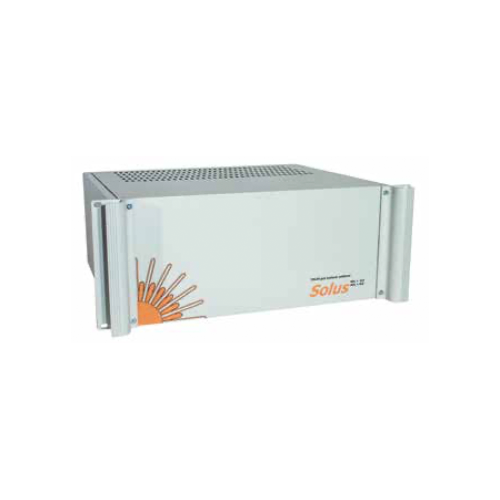

Solus

Solus

  • Single or dual gas measurement via Tuneable Diode Laser Absorbance
  • Extremely quick measurement times (<3sec)
  • Low sample volume (15ml)
  • Built-in sampling system (filter, purge, flow control)
  • Integrated zirconia O2 sensor (optional)
  • Embedded PC (optional)

Specific Applications for Solus:

  • NH3 slip in SCR
  • Automotive engine testing
  • Marine emissions monitoring
  • Compliance monitoring under WID
Kontak Kami

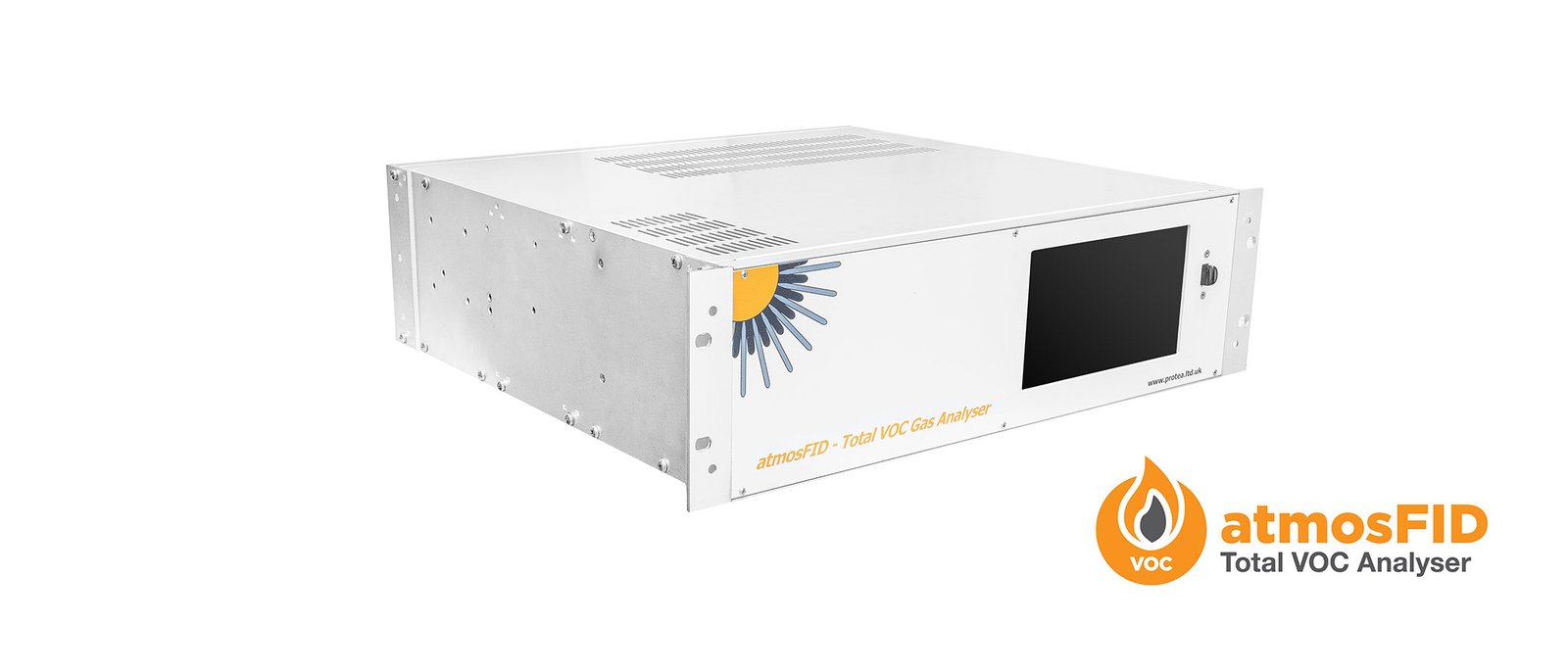

PROTEA atmosFID

PROTEA atmosFID

  • Multipoint systems
  • High dust systems – back purge control
  • Back-up systems, with automatic switch over
  • Fast-sampling loop systems with high flow by-pass sampling
  • Integration with IR, FTIR and TDL analysers from Protea
  • Fit for purpose heated sample lines and probes, ith in-built features for dilution or calibration gas checks

Protea can provide the atmosFID analyser in standard or custom integrations for a wide range of emissions and process monitoring needs. Using proven sampling system components and control that is used within our entire range of analysers,

Kontak Kami

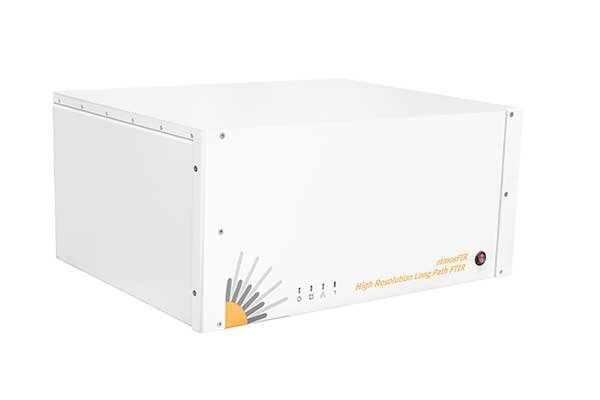

PROTEA atmosFIR air

PROTEA atmosFIR air

  • Ambient air pollution testing
  • Thousands of VOCs detected
  • GHG analysis
  • Emergency response
  • Occupational hygiene

Multi-component, multi-range, portable FTIR gas analyser Measure 1000’s of gases with single unit Software offers no-limit on number of gas measurements Software automatically detects new gases, using patented algorithms Data can be downloaded and re-analysed offline for new gases Built in H2S sensor, inlet filter and sampling pump control

Kontak Kami

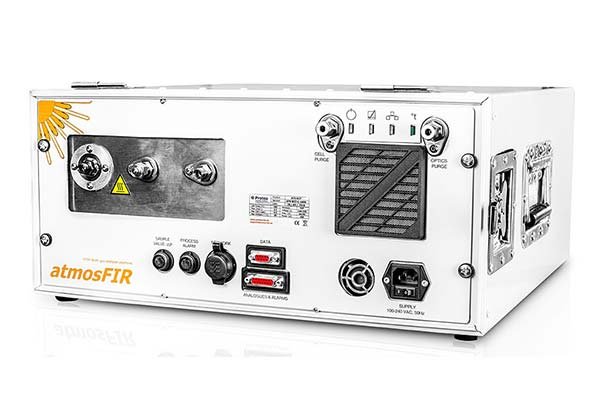

PROTEA atmosFIRt

PROTEA atmosFIRt

  • Stack Emission Testing
  • Incineration and Combustion Gas Monitoring
  • RealTOC measurement
  • Speciated VOC with use of high resolution
  • Abatement plant efficiency – inlet and outlet
  • Ambient air monitoring from 0.5ppm
  • Siloxane Measurements

Multi-component, multi-range portable FTIR gas analyser Measure 1000’s of gases with single unit Software offers no-limit on number of gas measurements at once, using powerful PLS algorithms Data can be downloaded and re-analysed offline for new gases Built in O 2 sensor, heated inlet filter and sampling control

Kontak Kami

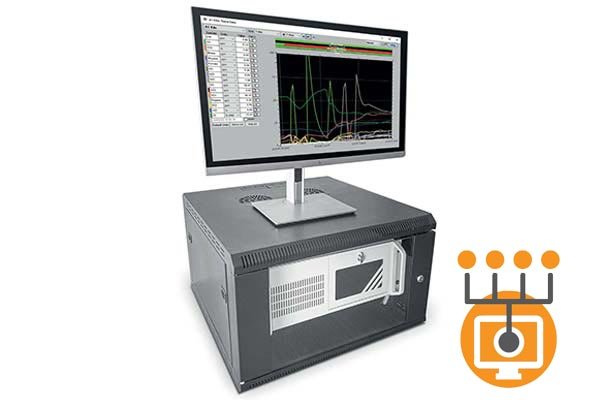

PROTEA atmoStation

PROTEA atmoStation

  • Emissions, Ambient Air, Meteorological and Process Data
  • ProDAHS or AC-DC (MCERTS Certified) Reporting software
  • Ethernet / Serial / USB / Analog / Digital inputs
  • Wide range of protocols – Modbus/Profibus/OPC
  • Configurable reports ready for print
  • Real-time graphs and charts
  • Span gas delivery to CEMs

-

Kontak Kami

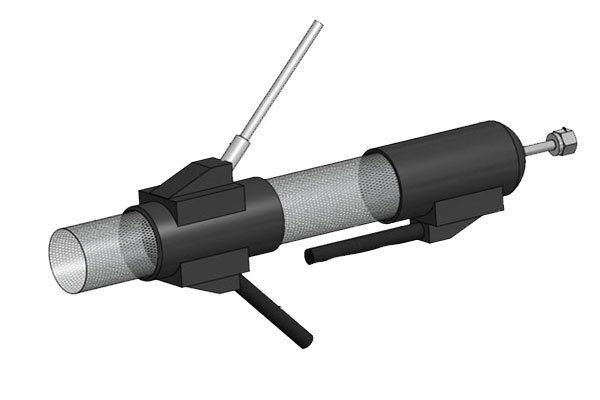

PROTEA HSSM

PROTEA HSSM

  • Heated 4 stream sampling for gas analysers
  • Modular 19” design for multiple HSSMs to be used
  • Stack Emissions
  • Process Monitoring
  • Builds into Protea FTIR gas analysis systems

-

Kontak Kami
PROTEA ProtIR 204m

PROTEA ProtIR 204m

  • Stack Emission Testing
  • Back-up to Continuous Emission Monitoring Systems
  • Combustion gases under WID, LCPD
  • RealTOC measurement
  • Speciated VOC with benefit of high resolution

-

Kontak Kami
PROTEA SSCM

PROTEA SSCM

  • CEMs
  • 2 stream measurement control. For example, abatement system Inlet and Outlet
  • Fire Testing procedure automation
  • Muti-stream system control – up to 12 measurement streams to 1 analyser via integration with Protea’s Heated Stream Selection Modules (HSSM)

Combines with atmosFIR FTIR gas analysers to form complete Continuous Emissions Monitoring (CEM) system Easy to integrate – 19” rack mounted Built-in PLC control SSCM configurable on application

Kontak Kami

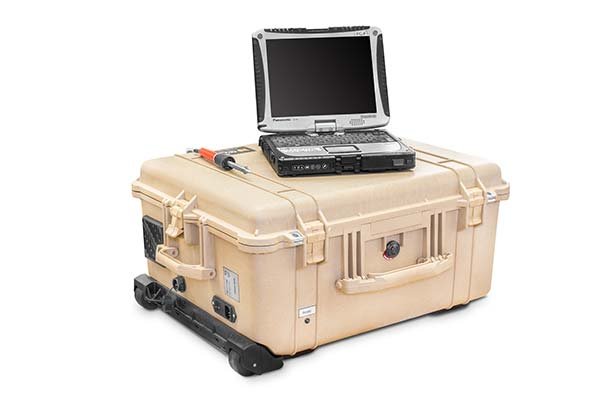

PROTEA ProMass-t

PROTEA ProMass-t

  • Leak Testing
  • Ambient air measurements
  • Syngas Analysis – H2, N2, CO2, CO, CH4, H2S
  • BTEX quantification
  • Breath analysis

Detects almost any gas Advanced vacuum pumping and ion stabilisation or quick start-up time Application of Protea’s advanced chemometric routines to aid quantification Compatible with our sampling system control systems for turn-key solutions

Kontak Kami

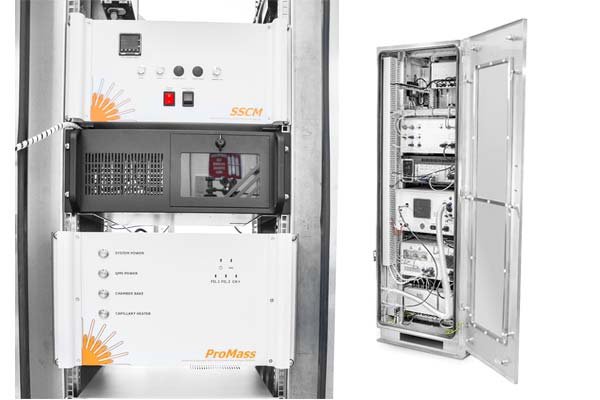

PROTEA ProMass

PROTEA ProMass

  • Hydrogen (H2) fuel analysis
  • H2 production processes
  • Ambient air measurements
  • BTEX quantification
  • Ethylene and ethylene oxide production
  • Breath analysis
  • Gas Blending and bulk gas production

Detects almost any gas Advanced vacuum pumping and ion stabilisation for quick start-up time Application of Protea’s advanced chemometric routines to aid quantification Compatible with our sampling system control systems for turnkey solutions

Kontak Kami
