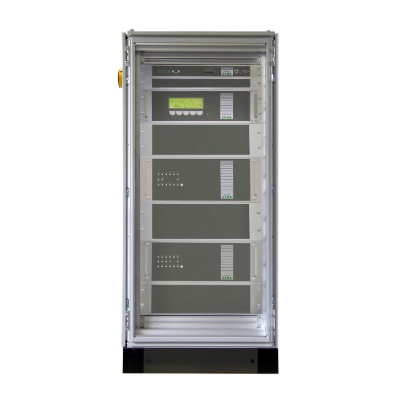

Zera MTS 140
- Source system
- Accuracy class: 0.02 - 0.01
- Output power U: 1 x 1500 VA
- Output power I: 1 x 1500 VA *
-
Testing Instrument
Zera

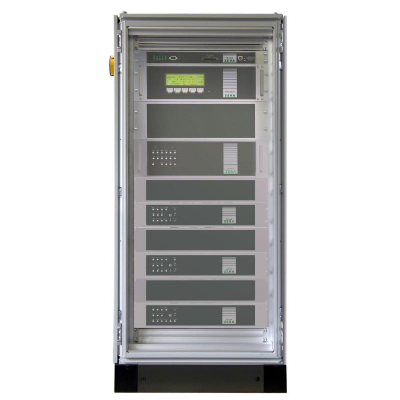

Zera MTS 310
- Source system
- Accuracy class: 0.02 - 0.01
- Output power U: 3 x 500 VA
- Output power I: 3 x 600 VA *
-

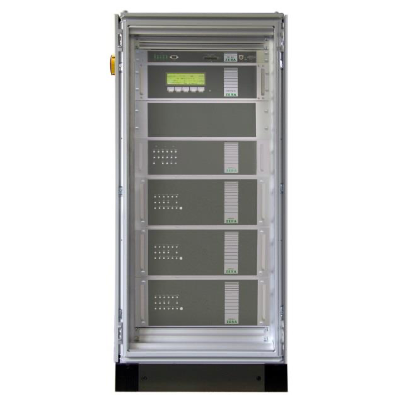

Zera MTS 320
- Source system
- Accuracy class: 0.02- 0.01
- Output power U: 3 x 500 VA
- Output power I: 3 x 2000 VA *
-

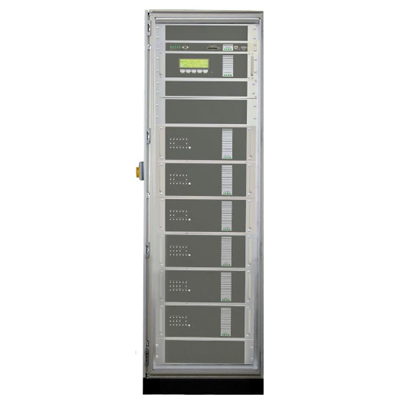

Zera MTS 340
- Source system
- Accuracy class: 0.02- 0.01
- Output power U: 3 x 1500 VA
- Output power I: 3 x 2000 VA *
-

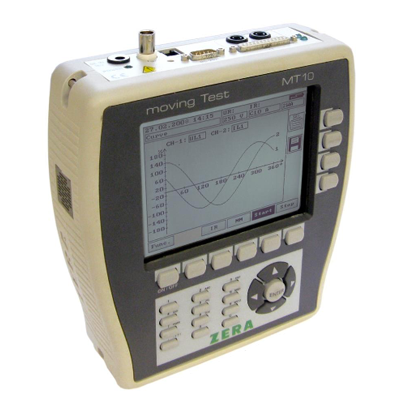

Zera Moving TEST - MT 10
- Accuracy Class : 0.2
- Testing of energy and power registers
- Power and energy measurement
- Frequency measurement phase angle measurement
- Power for testing of 2-wire circuits
- Factor measurement
- Harmonic waveform analysis up to 40th
- Measurement of THD
- Vector diagram
- Wave form sampling
- Weight app. 1.6Kg
-

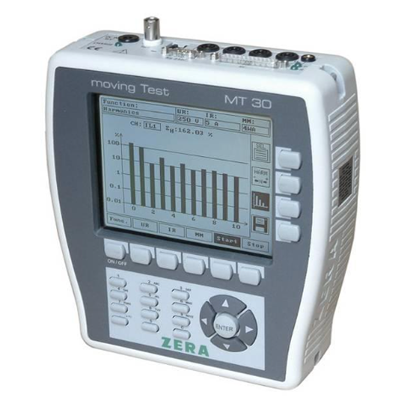

Zera Moving Test - MT30
- Accuracy Class : 0.2
- For testing of 2-wire, 3-wire and 4-wire circuits
- Testing of energy and power registers
- Power and energy measurement
- 4-quadrant measurement
- Frequency measurement
- Phase angle measurement
- Power factor measurement
- Harmonic waveform analysis up to 40th
- Measurement of THD
- Vector diagram
- Wave form sampling
- Rotary field indication
- Weight app. 1.6Kg
-

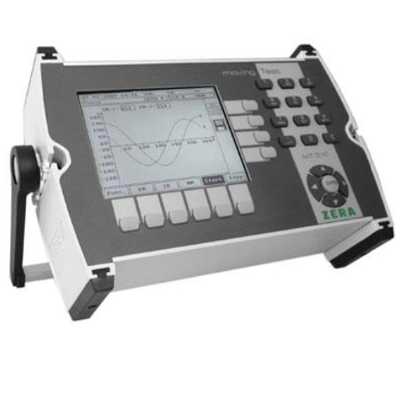

Zera Moving Test - MT310 - 320
- Accuracy Class : 0.1 - 0.05
- For testing of 2-wire, 3-wire and 4-wire circuits
- Testing of energy and power registers
- Power and energy measurement
- 4-quadrant measurement
- Frequency measurement
- Phase angle measurement
- Power factor measurement
- Harmonic waveform analysis up to 40th
- Measurement of THD
- Vector diagram
- Wave form sampling
- Rotary field indication
- Weight app. 1.6Kg
-

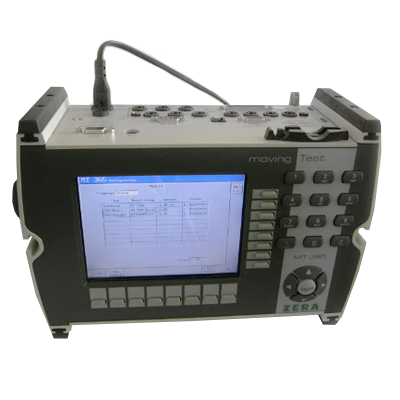

Zera Moving Test - MT365 - 360
- Accuracy Class : 0.1 - 0.05
- For testing of 2-wire, 3-wire and 4-wire circuits
- Testing of energy and power registers
- Power and energy measurement
- 4-quadrant measurement
- Frequency measurement
- Phase angle measurement
- Power factor measurement
- Harmonic waveform analysis up to 40th
- Measurement of THD
- Vector diagram
- Wave form sampling
- Rotary field indication
- Weight app. 1.6Kg
-

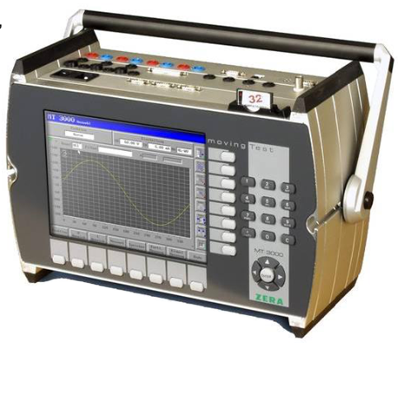

Zera Moving Test - MT3000 Reference Meter System
- Energy meter testing of the accuracy class 0.2s, 0.2, 0.5, 1 and 2 for 2-wire, 3-wire and 4-wire circuits
- Power and energy measurement of active, reactive and apparent energy
- 4 quadrant measurement
- Frequency- , phase angle- and power factor measurement
- Harmonic waveform analysis for voltage and current up to the 40th
- harmonics Harmonic analysis with selective power measurement
- Waveform sampling and displaying
- Vector diagram display
- Operating burden measurement on instrument transformers for CT and PT
- Ratio test on PT`s and CT`s
- Testing of voltage, current and power transducers
- Weight app. 9Kg
-

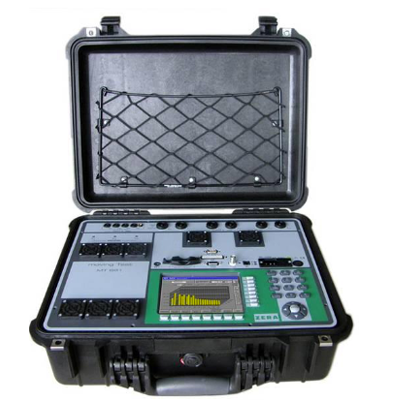

Zera Moving Test – MT681 – MT686
- Accuracy Class : 0.1 - 0.05
- Verification of the load conditions on metering installations
- Verification of the energy registration
- Mains supply either via available test voltage or separate mains supply
- Testing of meters with accuracy classes 1 and 2
- 4 Quadrant measurement
- Frequency- , phase angle- and power factor measurement
- Independent generation of load conditions by using incoming voltage from the grid
- Harmonic spectrum analysis
- Wave form analysis
- Weight app. 16 Kg
-

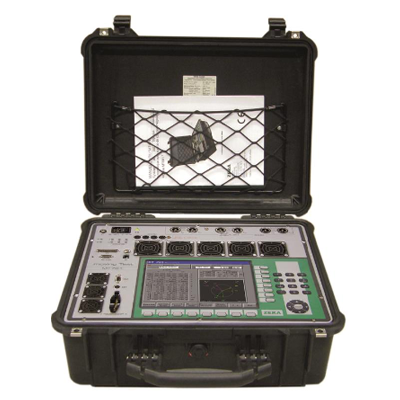

Zera Moving Test – MT781 – MT786
- Accuracy Class : 0.1 - 0.05
- Verification of the load conditions on metering installations
- Verification of the energy registration
- Mains supply either via available test voltage or separate mains supply
- Testing of meters with accuracy classes 1 and 2
- 4 Quadrant measurement
- Frequency- , phase angle- and power factor measurement
- Independent generation of load conditions by generating voltage and current
- Harmonic spectrum analysis
- Wave form analysis
- Weight app. 20 Kg
-

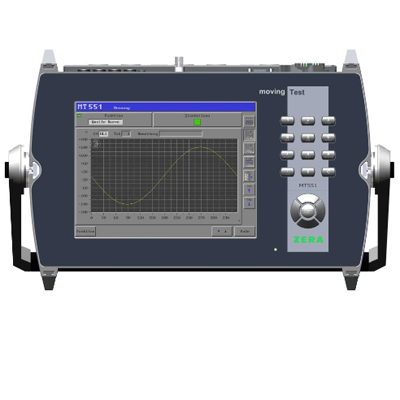

Zera Moving Test – MT551 Voltage/Current Source
- Three phase portable current-/voltage source up to 120 A and 500 V
- All test values are generated synthetically.
- Powerful unit with single phase mains supply
- Easy user guidance
- User friendly menu guided operation via touch screen
- External control via PC possible
- Clearly arranged indication of test values via 10.4“ TFT color display
- Weight app. 21,2 Kg

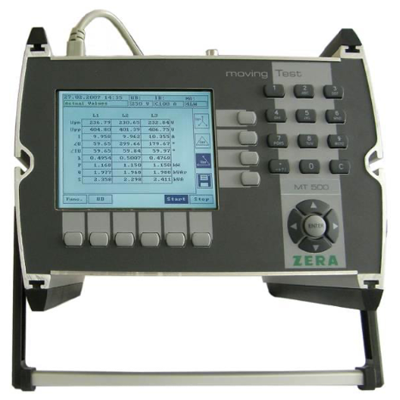

Zera Moving Test – MT500 Voltage/Current Source
- Three phase portable current-/voltage source up to 12 A and 300 V
- All test values are generated synthetically.
- Powerful unit with single phase mains supply
- Easy user guidance
- User friendly menu guided operation via built-in soft-keys
- External control via PC possible
- Clearly arranged indication of test values via 6.4“ LCD Display
- Weight app. 11Kg
-
Zera Moving Test – MT400 Current Source
- Three phase portable current source up to 12 A
- Mains supply either via available test voltage or separate mains supply
- Synchronization of the test currents to the existing test voltage phases of the meter under test
- All test values are generated synthetically
- Powerful unit with single phase mains supply
- Easy user guidance
- User friendly menu guided operation via built-in soft-keys
- External control via PC possible
- Clearly arranged indication of test values via 6.4“ LCD Display
- Weight app. 8Kg
-

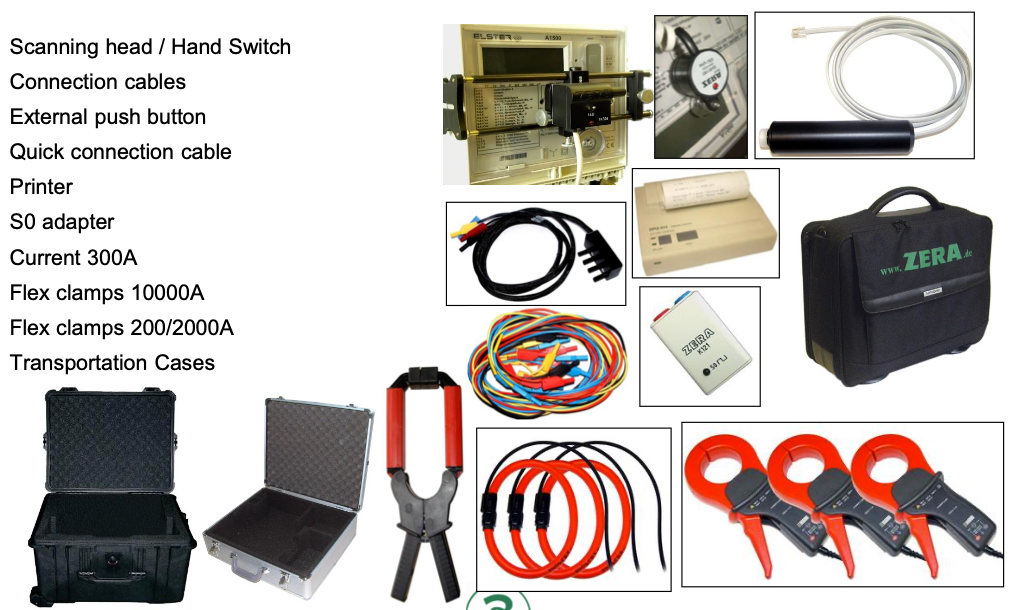

Zera Optional Accessories For MT Series
- Scanning head / Hand Switch
- Connection cables
- External push button
- Quick connection cable
- Printer S0 adapter
- Current 300A
- Flex clamps 10000A
- Flex clamps 200/2000A
- Transportation Cases
-

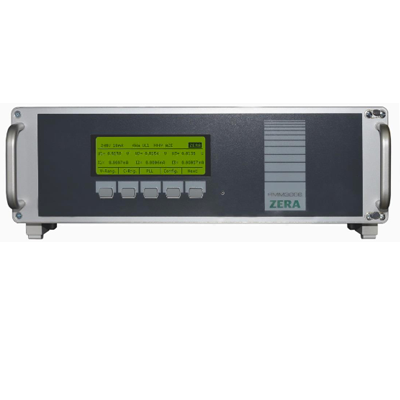

Zera Multimeter RMM 3006
- Accuracy Class : 0.02
- For testing of 2-wire, 3-wire and 4-wire circuits
- Testing of energy meters via power proportional frequency input
- Comfortable and powerful operation by external PC and SSM3000 software
- Power and energy measurement
- 4-quadrant measurement
- Frequency measurement
- Phase angle measurement
- Power factor measurement
- Harmonic waveform analysis up to 70th*
- Measurement of THD*
- Vector diagram*
- Wave form sampling*
-

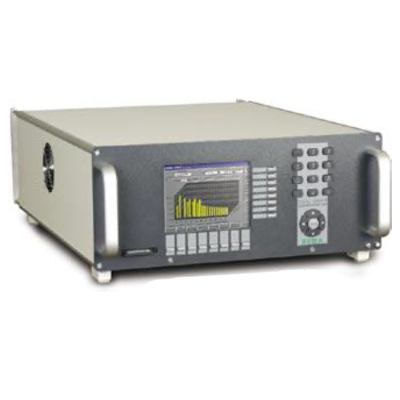

Zera Comparator COM3003
- Accuracy Class : < 0.01
- High accuracy, independent of measuring mode
- Excellent long-term stability
- Use of DC-capable current transformers
- Recalibration period by PTB (German National Metrology Laboratory) set for 2 years*
- RS 232 and IEEE 488 interfaces
- SCPI compatible IEEE 488 interface commands
- Automatic measuring range selection
- Only one current input for the whole measuring range
- Direct traceability of measuring accuracy by connection of DC standard and frequency standard devices
-
